SPAD7x7-to-FMC board
FMC daugther card to interface the BrightEyes-TTM with external photon-signals from a commercial 7x7 SPAD (49 channels) detector. The input signals of this board are differential LVDS signals.
Brand: custom-built
Product code: custom-built
BOM and docs: 7x7SPAD_FMC
Gerber File: Gerber_7x7SPAD_FMC.zip

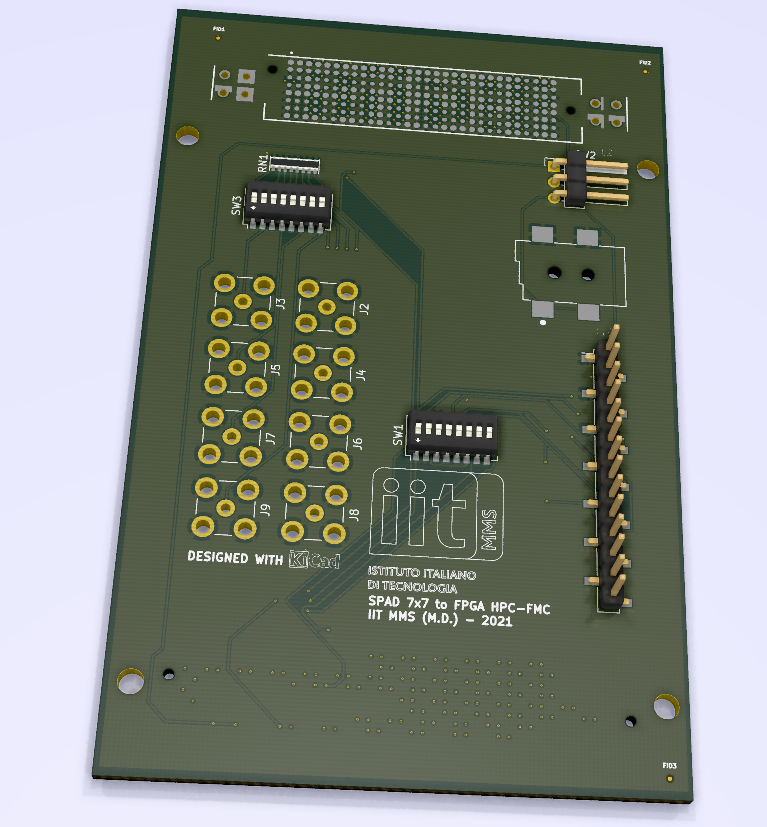

Fig.1 - I/Os 7x7SPAD-to-FMC connector Board (Front)

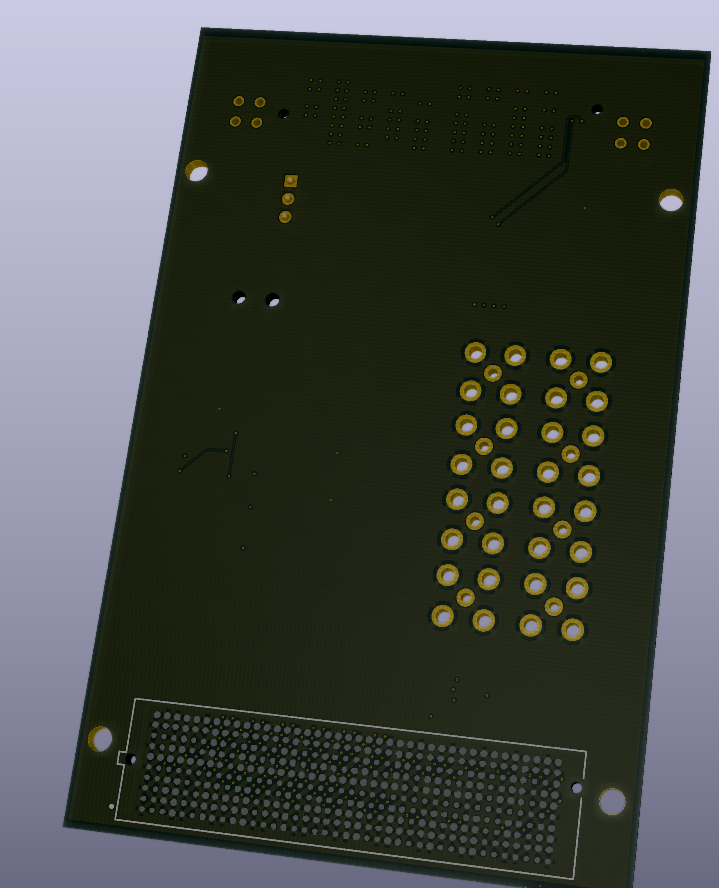

Fig.1 - I/Os 7x7SPAD-to-FMC connector Board (Back)
Pinout I/Os 7x7SPAD-to-FMC board
CH (VHDL) |
DET |
CONN |
NAME HPC |
FPGA |
|---|---|---|---|---|
0 |
OUT1_P |
D11 |
LA05_P |
G29 |
0 |
OUT1_N |
D12 |
LA05_N |
F30 |
1 |
OUT2_P |
H13 |
LA07_P |
E28 |
1 |
OUT2_N |
H14 |
LA07_N |
D28 |
2 |
OUT3_P |
E6 |
HA05_P |
F15 |
2 |
OUT3_N |
E7 |
HA05_N |
E16 |
3 |
OUT4_P |
J9 |
HA07_P |
B14 |
3 |
OUT4_N |
J10 |
HA07_N |
A15 |
4 |
OUT5_P |
H7 |
LA02_P |
H24 |
4 |
OUT5_N |
H8 |
LA02_N |
H25 |
5 |
OUT6_P |
D8 |
LA01_P |
D26 |
5 |
OUT6_N |
D9 |
LA01_N |
C26 |
6 |
OUT7_P |
E2 |
HA01_P |
H14 |
6 |
OUT7_N |
E3 |
HA01_N |
G14 |
7 |
OUT8_P |
C22 |
LA18_P |
F21 |
7 |
OUT8_N |
C23 |
LA18_N |
E21 |
8 |
OUT9_P |
C18 |
LA14_P |
B28 |
8 |
OUT9_N |
C19 |
LA14_N |
A28 |
9 |
OUT10_P |
J15 |
HA14_P |
J16 |
9 |
OUT10_N |
J16 |
HA14_N |
H16 |
10 |
OUT11_P |
G6 |
LA00_P |
C25 |
10 |
OUT11_N |
G7 |
LA00_N |
B25 |
11 |
OUT12_P |
K10 |
HA06_P |
D14 |
11 |
OUT12_N |
K11 |
HA06_N |
C14 |
12 |
OUT13_P |
F7 |
HA04_P |
F11 |
12 |
OUT13_N |
F8 |
HA04_N |
E11 |
13 |
OUT14_P |
G9 |
LA03_P |
H26 |
14 |
OUT15_P |
G21 |
LA20_P |
E19 |
14 |
OUT15_N |
G22 |
LA20_N |
D19 |
15 |
OUT16_P |
D17 |
LA13_P |
A25 |
15 |
OUT16_N |
D18 |
LA13_N |
A26 |
16 |
OUT17_P |
K16 |
HA17_P |
G13 |
16 |
OUT17_N |
K17 |
HA17_N |
F13 |
17 |
OUT18_P |
K7 |
HA02_P |
D11 |
17 |
OUT18_N |
K8 |
HA02_N |
C11 |
18 |
OUT19_P |
J6 |
HA03_P |
C12 |
18 |
OUT19_N |
J7 |
HA03_N |
B12 |
19 |
OUT20_P |
H10 |
LA04_P |
G28 |
19 |
OUT20_N |
H11 |
LA04_N |
F28 |
20 |
OUT21_P |
C10 |
LA06_P |
H30 |
20 |
OUT21_N |
C11 |
LA06_N |
G30 |
21 |
OUT22_P |
F16 |
HA15_P |
H15 |
21 |
OUT22_N |
F17 |
HA15_N |
G15 |
22 |
OUT23_P |
D23 |
LA23_P |
B22 |
22 |
OUT23_N |
D24 |
LA23_N |
A22 |
23 |
OUT24_P |
E18 |
HA20_P |
K13 |
23 |
OUT24_N |
E19 |
HA20_N |
J13 |
24 |
OUT25_P |
E9 |
HA09_P |
F12 |
24 |
OUT25_N |
E10 |
HA09_N |
E13 |
25 |
OUT26_P |
K13 |
HA10_P |
A11 |
25 |
OUT26_N |
K14 |
HA10_N |
A12 |
26 |
OUT27_P |
F4 |
HA00_P |
D12 |
26 |
OUT27_N |
F5 |
HA00_N |
D13 |
27 |
OUT28_P |
D14 |
LA09_P |
B30 |
27 |
OUT28_N |
D15 |
LA09_N |
A30 |
28 |
OUT29_P |
D20 |
LA17_P |
F20 |
28 |
OUT29_N |
D21 |
LA17_N |
E20 |
29 |
OUT30_P |
K22 |
HA23_P |
L12 |
29 |
OUT30_N |
K23 |
HA23_N |
L13 |
30 |
OUT31_P |
G24 |
LA22_P |
C20 |
30 |
OUT31_N |
G25 |
LA22_N |
B20 |
31 |
OUT32_P |
H19 |
LA15_P |
C24 |
31 |
OUT32_N |
H20 |
LA15_N |
B24 |
32 |
OUT33_P |
F10 |
HA08_P |
E14 |
32 |
OUT33_N |
F11 |
HA08_N |
E15 |
33 |
OUT34_P |
C14 |
LA10_P |
D29 |
33 |
OUT34_N |
C15 |
LA10_N |
C30 |
34 |
OUT35_P |
J12 |
HA11_P |
B13 |
34 |
OUT35_N |
J13 |
HA11_N |
A13 |
35 |
OUT36_P |
F19 |
HA19_P |
H11 |
35 |
OUT36_N |
F20 |
HA19_N |
H12 |
36 |
OUT37_P |
H25 |
LA21_P |
A20 |
36 |
OUT37_N |
H26 |
LA21_N |
A21 |
37 |
OUT38_P |
J21 |
HA22_P |
L11 |
37 |
OUT38_N |
J22 |
HA22_N |
K11 |
38 |
OUT39_P |
J18 |
HA18_P |
K14 |
38 |
OUT39_N |
J19 |
HA18_N |
J14 |
39 |
OUT40_P |
E12 |
HA13_P |
L16 |
39 |
OUT40_N |
E13 |
HA13_N |
K16 |
40 |
OUT41_P |
H16 |
LA11_P |
G27 |
40 |
OUT41_N |
H17 |
LA11_N |
F27 |
41 |
OUT42_P |
G12 |
LA08_P |
E29 |
41 |
OUT42_N |
G13 |
LA08_N |
E30 |
42 |
OUT43_P |
E15 |
HA16_P |
L15 |
42 |
OUT43_N |
E16 |
HA16_N |
K15 |
43 |
OUT44_P |
H22 |
LA19_P |
G18 |
43 |
OUT44_N |
H23 |
LA19_N |
F18 |
44 |
OUT45_P |
K19 |
HA21_P |
J11 |
44 |
OUT45_N |
K20 |
HA21_N |
J12 |
45 |
OUT46_P |
G15 |
LA12_P |
C29 |
45 |
OUT46_N |
G16 |
LA12_N |
B29 |
46 |
OUT47_P |
C26 |
LA27_P |
C19 |
46 |
OUT47_N |
C27 |
LA27_N |
B19 |
47 |
OUT48_P |
F13 |
HA12_P |
C15 |
47 |
OUT48_N |
F14 |
HA12_N |
B15 |
48 |
OUT49_P |
G18 |
LA16_P |
B27 |
48 |
OUT49_N |
G19 |
LA16_N |
A27 |
VREF1 |
G27 |
LA25_P |
G17 |
|
VREF0 |
G28 |
LA25_N |
F17 |
|
EN_SPAD |
G30 |
LA29_P |
C17 |
|
SDA |
C31 |
HPC_IIC_SDA |
IIC MUX |
|
SCL |
C30 |
HPC_IIC_SCL |
IIC MUX |
|
IIT ADAPTER |
||||
J2 |
H28 |
LA24_P |
A16 |
|
J3 |
H29 |
LA24_N |
A17 |
|
J4 |
H31 |
LA28_P |
D16 |
|
J5 |
H32 |
LA28_N |
C16 |
|
J6 |
H34 |
LA30_P |
D22 |
|
J7 |
H35 |
LA30_N |
C22 |
|
J8 |
H37 |
LA32_P |
D21 |
|
PX24 Duplicated |
J9 |
H38 |
LA32_N |
C21 |
